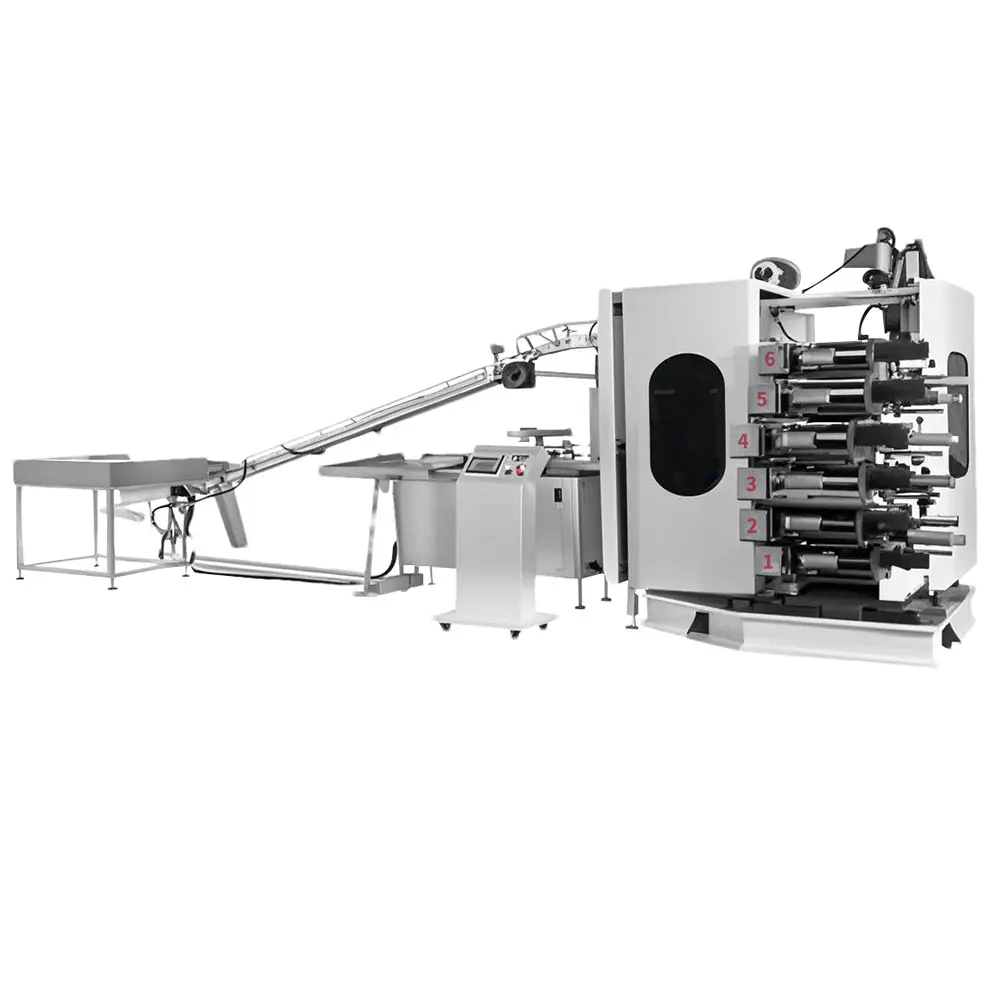

| Model | ECI180-6D |
|---|---|
| Printing color | 6 |
| Printing speed | 200-400pcs/min |
| Max. Printing height | 160mm |
| Min. Printing height | 30mm |
| Max. printing area diameter | 180mm |
| Min. printing area diameter | 40mm |
| Max. cup diameter | 190mm |
| Min. cup diameter | 40mm |
| Printing roller diameter | 40mm |
| Printing plate diameter | 600mm |
| Printing angle | 3°-13° |
| Cup mould roller number | 8pcs |
| Air Pressure | 6-8Pa |

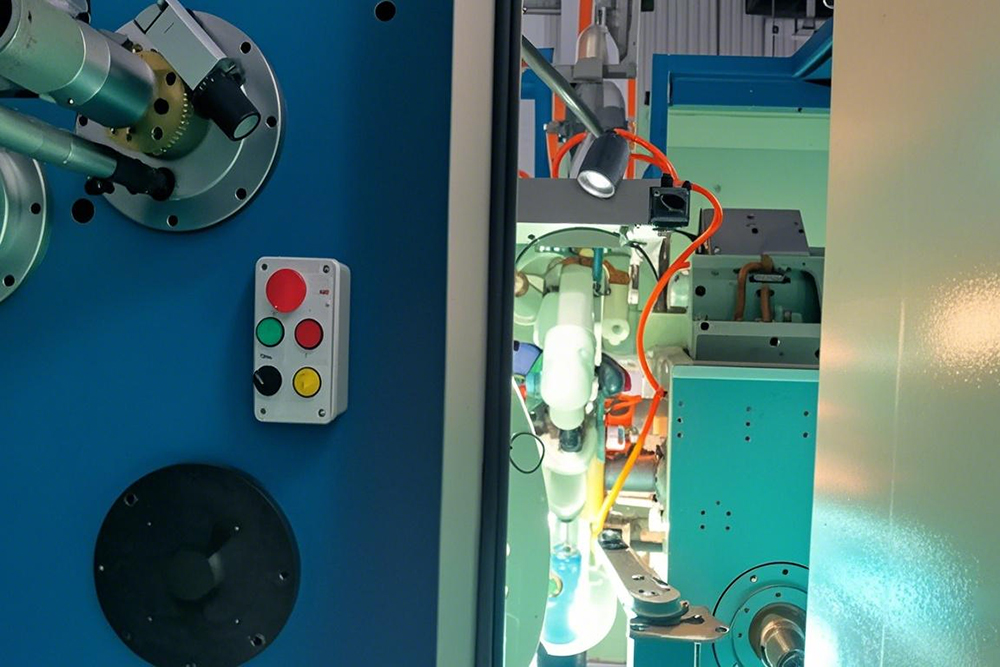

| UV dry rate power | 6KW |
| Voltage | 380V 50 HZ/3p 4Line |
| Main motor power | 7.5Kw |
| Total power | 19Kw |
| Dimension | L5500*W2300*H2200mm |
| Weight | 4.8T |
Designed to handle advanced printing on irregular shapes, including cylindrical, hemispherical, and other complex geometries.
Ideal for printing logos and images on a variety of items such as milk tea cups, yogurt cups, bowls, and similar products.
Provides vibrant and diverse color options to cater to a wide array of design requirements.

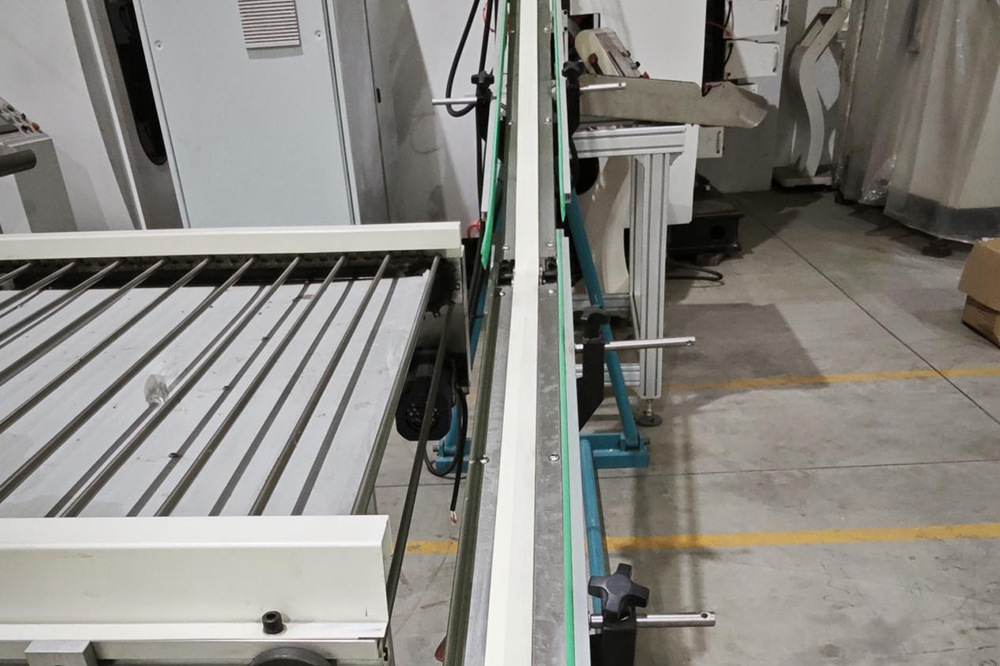

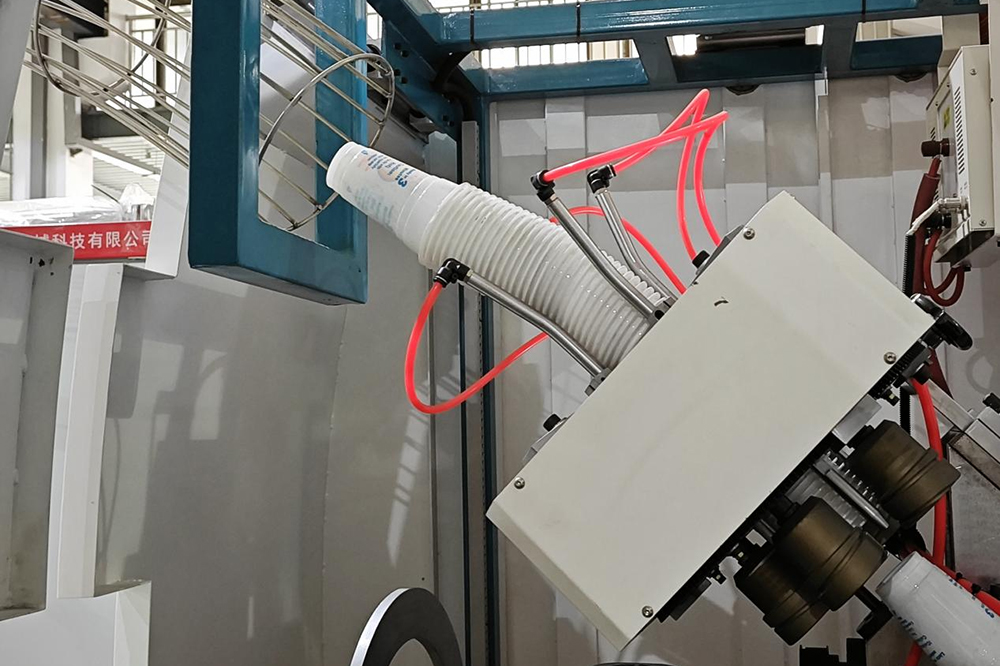

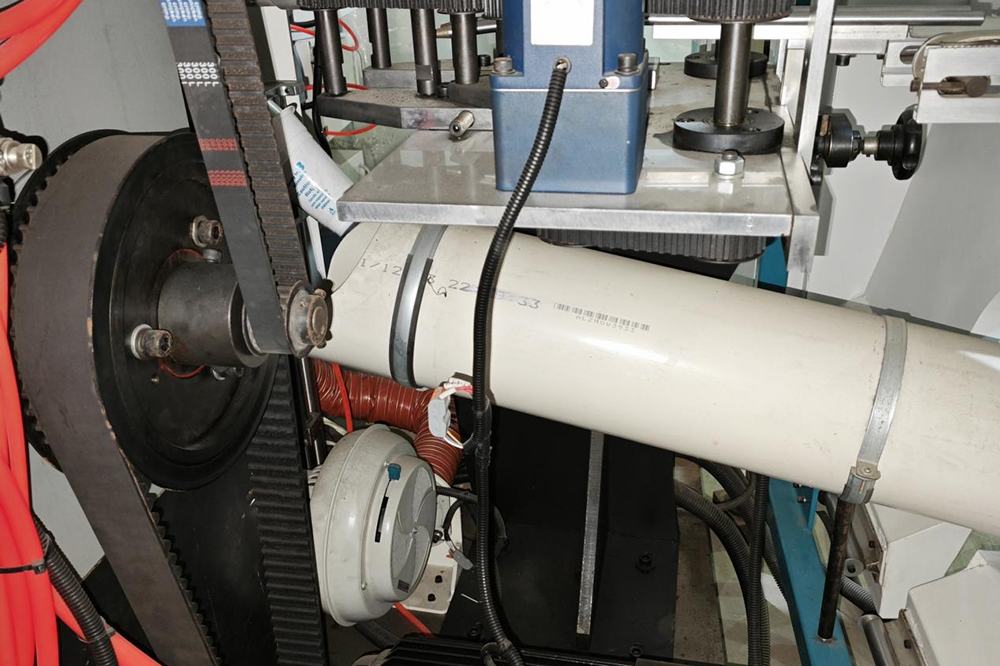

Equipped with automatic feeding, mold cleaning, and double-cup separation for smooth, efficient, and user-friendly operations.
Capable of producing up to 400 products per minute, or 24,000 per hour, ensuring fast and efficient production.
Delivers high-precision printing, reducing errors and boosting overall production efficiency.
Uses environmentally friendly inks and materials, minimizing waste and supporting sustainable practices.
Adheres to strict environmental and operational safety standards, ensuring a safe and compliant manufacturing process.
The plastic cup curved dry glue machine is engineered to print on a wide range of materials, including PP, PS, PET, PLA, and PVC. It is particularly suited for applying trademarks, production dates, brand logos, and advertising designs on various food and beverage containers such as coffee cups, yogurt cups, jelly cups, wine cups, bowls, and more. This ensures high-quality, durable printing that serves both functional and promotional needs.
Featuring a specialized punching machine for precise plate alignment, along with custom fixtures and printing heads, the cup printing machine offers high-precision printing. This ensures exceptional print quality and efficiency, making it ideal for printing advertising slogans, event details, and decorative patterns on promotional cups, event cups, and other marketing materials.
The cup printer is an excellent solution for printing event logos and sponsor advertisements on cylindrical containers such as event cups and commemorative cups. It provides a professional and visually striking way to enhance brand visibility during gatherings, conferences, and special occasions.
The cup printing machine can also be utilized to print decorative patterns and personalized designs on household items like glassware, ceramic cups, and stainless steel cups. This enables creative customization, transforming everyday items into unique and visually appealing pieces.
Place the curved container (e.g., a plastic cup) that requires printing onto the worktable of the curved offset press. Secure it firmly to ensure the container remains stable and does not shift during the printing process.

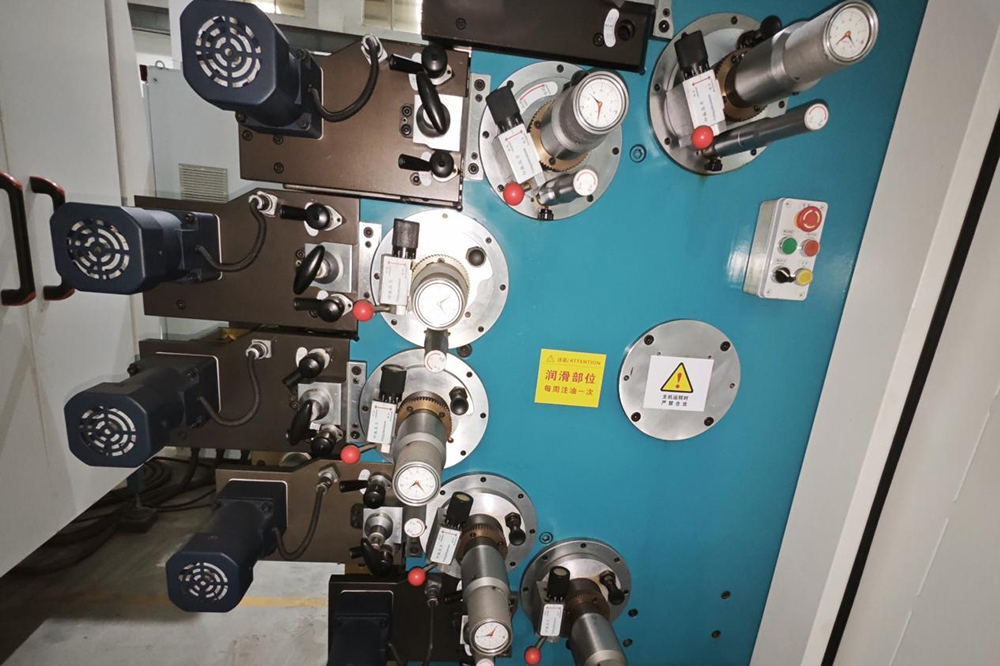

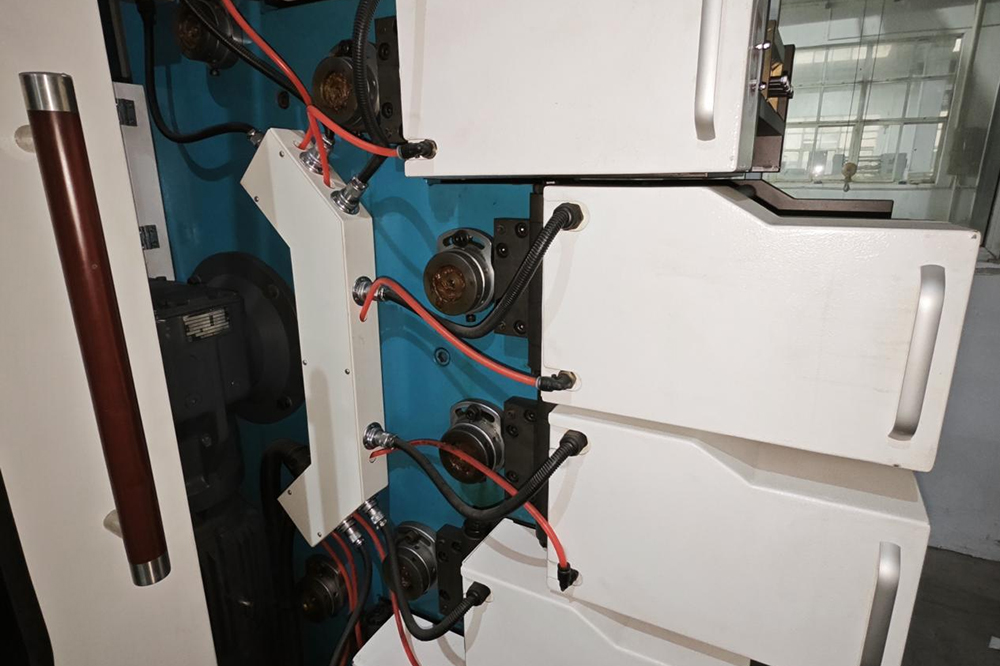

Adjust the press's printing head, printing pressure, printing speed, and other parameters according to the specific requirements to achieve optimal printing results and quality.
Use the control panel of the curved offset press or the associated computer software to configure the content to be printed, including text, patterns, colors, etc. If multi-color printing is required, perform the necessary color separation and settings.
Once the equipment and printing content settings are confirmed, start the curved offset press to begin printing. During the process, closely monitor the printing results and make timely adjustments to the equipment parameters to maintain print quality.
After printing is finished, stop the curved offset press, remove the printed curved container, and inspect the quality of the print.
Clean the printing head, worktable, and other components of the curved offset press to ensure the equipment remains clean and in good working condition. Additionally, perform regular maintenance to extend the lifespan of the equipment.
