| Parameter | Specification |
|---|---|

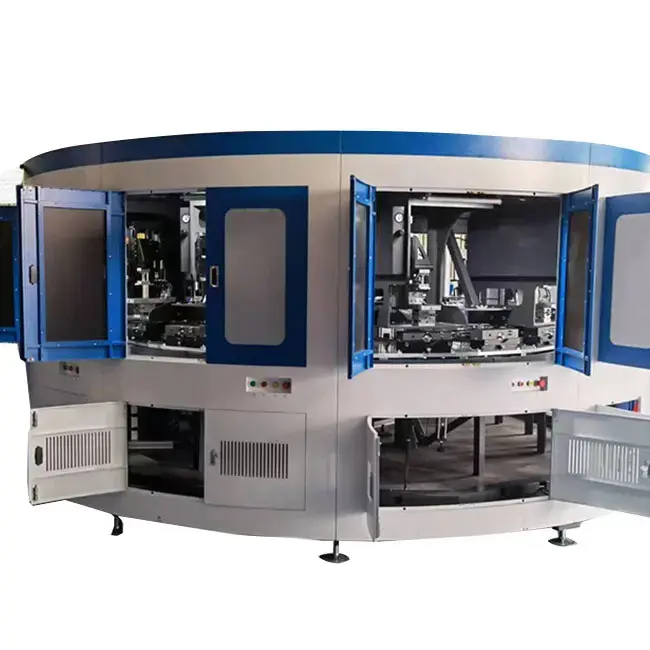

| Model | ECI-SPM002 |
| Maximum printing area | 220mm * 500mm |
| Sheet material | 350mm * 720mm |
| Maximum board size | ±0.1mm |
| Overprinting accuracy | 1000mm |
| Printable bottle diameter | Ø20mm - Ø180mm |
| Maximum print perimeter | 500mm |
| Disk diameter | Ø2400mm |
| Turntable station | 16 |
| Capacity | 1800pcs/min |
| Dimension | 3500mm * 3430mm * 2050mm |
| Air pressure | 0.4 - 0.6Mpa |
| Voltage | 380V 50/60HZ |
| Machine weight | 1800KG |
Utilizes internationally renowned imported electrical components, including advanced photoelectric sensors from top brands like Omron, Keyence, and Sick to enhance stability and operational lifespan.
Handles bottle diameters from Ø20mm to Ø180mm with a max printing area of 220mm*500mm. Ideal for beer bottles, thermos cups, kegs, and cosmetics containers.
Delivers exceptional productivity with a minimum output of 1800 pieces per hour and normal outputs exceeding 3000 pieces per hour, achieving 2-3 times the speed of semi-automatic machines.
Offers a high overprinting accuracy of ±0.1mm, ensuring printed details, fine text, and complex patterns remain sharp, vibrant, and clear.
Equipped with servo motors for print head movements (front/back, up/down). Leverages linear guides and precise screw drives for an optimal 2-second working cycle.
Perfect for printing essential product data, ingredients, usage warnings, and branding elements directly on cosmetic jars, tubes, and bottles.
Suitable for high-speed printing on mineral water bottles, storage buckets, tea cups, vacuum flasks, and other food-grade containers.
Enables precise, customized printing of graphics and text on irregular shapes, promotional gifts, and decorative keepsakes.
Assists businesses in improving brand awareness by placing high-resolution company logos, slogans, and artwork on mass-produced containers.
Ensure all components are in good working condition. Inspect for abnormalities. Prepare target substrates (paper, fabric, plastic) and ink/pigment consumables. Pre-adjust pressure, speed, and temperature settings.
Create or prep the design pattern using CAD or specialized design software, and import it directly into the screen printer's control interface.
Mount and tension the screen mesh correctly. Position and level the printing table to optimize sheet feeding and collection. Tweak speed, pressure, and thermal configurations for exact batch requirements.
Place materials onto the feed deck. Launch the run cycle. Maintain active monitoring of product output and modify parameters on the fly for optimal printing quality.
Power down the machine, retrieve prints for secondary processes like drying/curing, clean the mesh screen, and execute scheduled maintenance routine.
The machine provides a high overprinting accuracy of ±0.1mm, ensuring sharp, clear details even on complex multi-color runs.
It is designed to print on round containers and bottles with diameters ranging from Ø20mm to Ø180mm.
This machine is widely used in cosmetics container labeling, food packaging (thermos cups, water bottles), custom gift printing, and corporate brand advertising.
The machine delivers a normal output exceeding 3000 pieces per hour (with a capacity up to 1800pcs/min depending on model settings), which is 2 to 3 times faster than standard semi-automatic screen printers.
The print head's movements are driven by high-performance servo motors. It utilizes precise guide screws and linear guide rails to maintain consistent positioning within a 2-second working cycle.
The equipment requires an air pressure supply of 0.4 to 0.6 Mpa and connects to standard electrical power running at 380V 50/60HZ.
