| Name | Specification | Quantity |
|---|---|---|
| Supply voltage | Three phase, 380v, 50hz | |
| Suitable materials | PP, PS, PET, PVC, TPU, etc. | |
| Feeding speed | 20m/min | 1 |
| Feed opening width | 120mm | 1 |
| Crushing capacity | 80-120kg | 1 |
| Screen diameter | 12mm (or customized) | |
| Host power | 4kw-4 level | 1 |
| Conveying fan | 2.2kw-2 level | 1 |
| Feeding motor | 0.75kw-4 | 1 |
| Rotating blade | 200mmx50mm | 3 |
| Fixed blade | 200mmx50mm | 2 |
| Conveying distance | 50 meters | 1 |
| Electrical components | Domestic | Several |
| Bearings | Domestic | Several |
| Frequency Converter | Huichuan | 1 |
| Cyclone bucket | 1 | |
| Blade material | SKD11 | 5 |

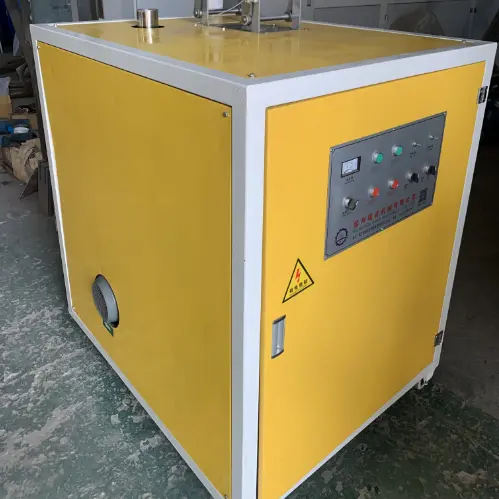

Equipped with a high-power motor and specially designed crushing cutters, it can quickly crush sheet edge materials into uniform particles, with high crushing efficiency and large production capacity to meet large-scale production needs.
Synchronous operation with the sheet machine, the edge material is crushed as soon as it is output, no need for manual collection and transportation, saving time and labor costs, and improving the degree of production automation.
By adjusting parameters such as tool spacing and rotation speed, the size of the crushed particles can be controlled to meet the requirements of recycled material particle size in different production links.
Optimized motor configuration and transmission system reduce energy consumption, save production costs while operating efficiently, and comply with the concept of green production.
The machine body and key components are made of high-quality steel and are strictly quality-tested. The equipment operates stably and is durable, which reduces maintenance frequency and ensures continuous operation of the production line.
Install the crusher at the edge material output position of the sheet machine, connect the power supply and the discharge pipe, and debug according to the operation manual to ensure the normal operation of the equipment.
Turn on the sheet machine and start the crusher at the same time. The edge material automatically enters the crushing chamber and is discharged from the discharge port after being crushed. The crushed particles are collected for subsequent production.
Check tool wear regularly and replace in time; clean dust and debris inside the equipment; lubricate motors, transmission parts, etc. to extend the service life of the equipment.
This equipment is designed to process various sheet edge materials, including PP, PS, PET, PVC, TPU, and more.
The crusher runs synchronously with your sheet machine. Edge materials are processed instantly as they exit the machine, eliminating the need for manual handling, saving labor costs, and automating the recycle loop.
Yes, you can control the final size of the crushed particles by modifying the machine parameters, such as adjusting the tool spacing and setting the rotation speed.
The system utilizes a 4kw-4 level host motor along with a 2.2kw-2 level conveying fan, delivering a reliable output capacity of 80 to 120kg per hour.
You should check the blade wear regularly and replace cutters when necessary. Keep the interior clean from debris and dust, and ensure that the motor and transmission sections are lubricated according to schedules.
This crusher runs at a standard feeding speed of 20 meters per minute and features a feed opening width of 120mm.
