| Parameter | Specification Details |
|---|---|

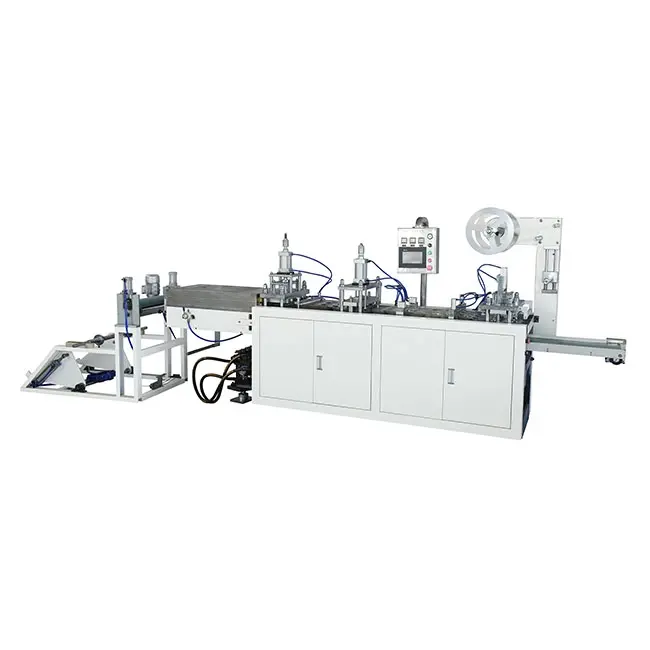

| Model | ECI-GJ450L |
| Sheet speed | 20-35 times/min |
| Maximum forming depth | 50mm |
| Maximum forming area | 260mm * 450mm |
| External air source | <0.2m³/min |
| Air pressure | 0.4-0.7Mpa |
| Total power | 25Kw |
| Overall Dimension | 4200 * 950 * 1700mm |
| Weight | 2500Kg |
Stamping velocity of 30-35 instances per minute with a fast forming cycle, making it ideal for high-capacity mass production.
Maximum forming area reaches up to 260mm * 450mm, supporting a wider size range of products and meeting diverse requirements.
Operates on only 25KW using advanced energy-saving technology, efficient heating elements, and a smart control system.
Utilizes an external air supply combined with advanced energy-saving heating setups for optimal green production.
Prepare the plastic sheets, clean the workspace, and inspect all components for normal operation.
Set molding parameters including working temperature, air pressure, and cycle times based on design needs.
Insert the pre-prepared plastic raw materials into the feeding inlet as required by the system.
Activate the machine to initialize the automated heating, pressing, and forming processes.
Consistently monitor the system operation to maintain product consistency and shape quality.
Retrieve finished disposable lids from the line and place them in the designated zone for curing and cooling.
Run quality checks to confirm items match specifications, then pack them for dispatch.
After production, clean and grease structural parts to ensure optimal readiness for the next production run.
