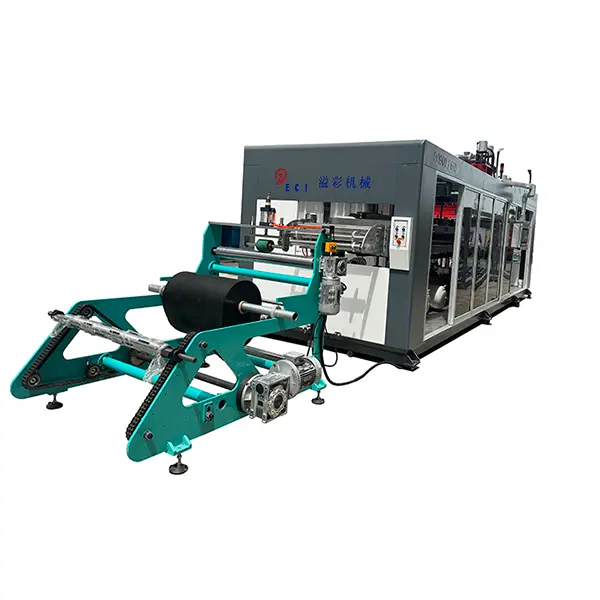

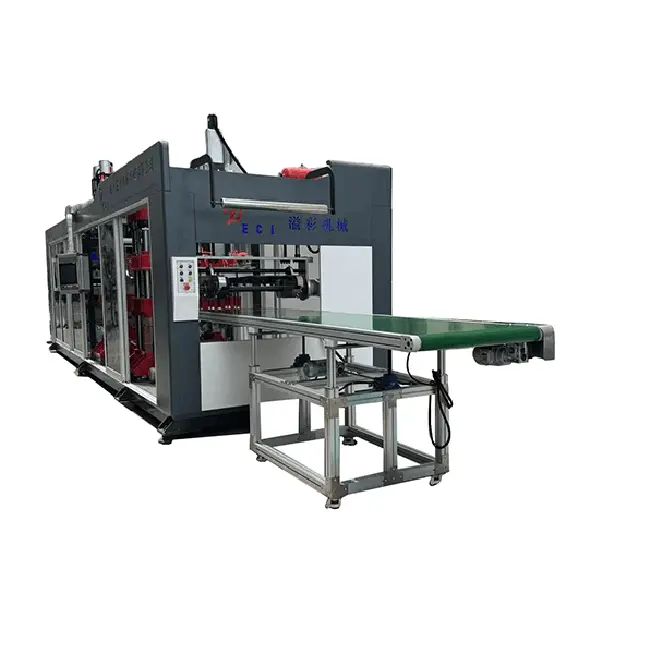

Technical specifications for ECI-S850 Multi-Station Thermoforming Machine
| Parameter | Specifications |
|---|---|
| Model | ECI-S850 |
| Sheet material | PP PET PS PVC HIPS ABS |
| Sheet thickness | 0.3-2.5mm |
| Sheet Width | 400-850mm |
| Max.Forming area | 660*650mm |
| Maximum forming depth of upper die | 150mm |
| Maximum forming depth of under die | 130mm |
| Sheet speed | 15-35 Strokes/min |
| Heating rated power | 180Kw |
| Upper path height | 180Kw |
| Lower power molding | 150KW |
| Mold height | 450-550mm |
| Punching up power | 150Kw |
| Punching down power | 150KW |
| Punching die power | 300-400mm |
| Servo power on molding | 7.5Kw |
| Servo power under molding | 5.5KW |
| Punching servo power | 7.5KW |
| Punching servo power | 5.5KW |
| Tensile servo | 5Kw |
| Feed servo | 5.5KW |
| Stacking servo | 2KW |
| Winding motor | 3Kw |
| Air pressure | 0.5-0.8Mpa |
| Voltage | 380V 50Hz |
| Total power | 210Kw |
| Dimension | L14m*W1.6m*H2.2m |
| Weight | 11T |
Overview of key structural components and modules

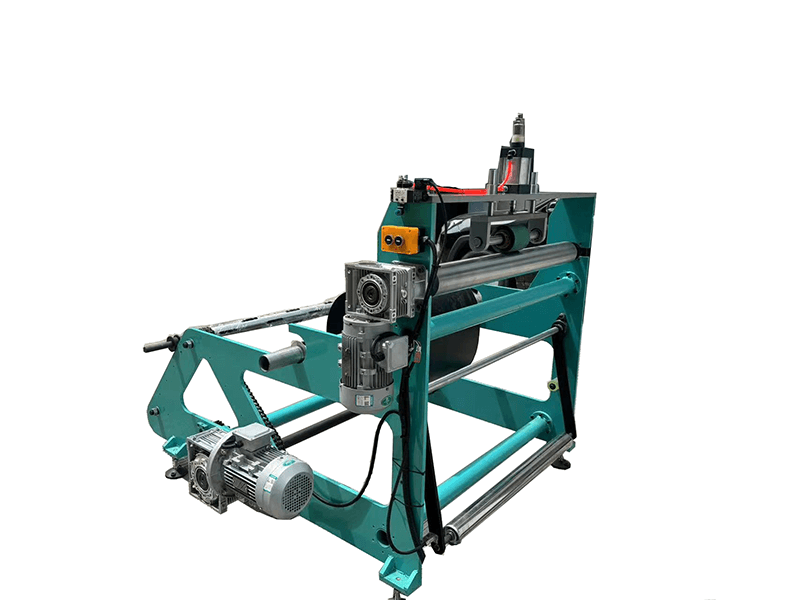

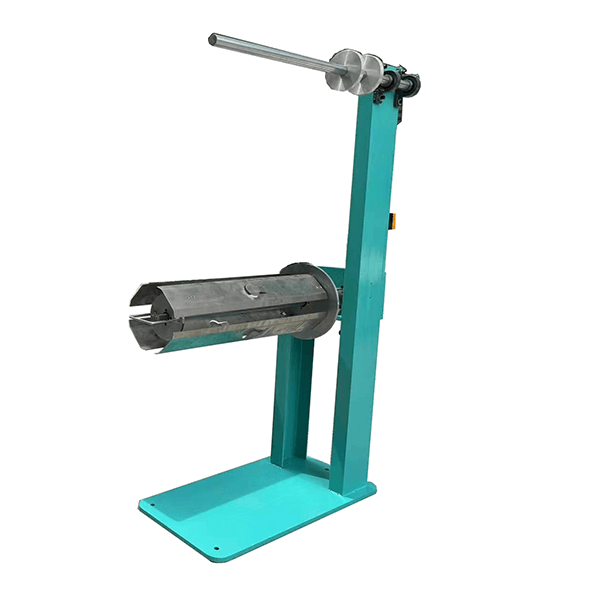

The feeding system is mainly used to feed the plastic sheet into the entrance of the thermoforming machine.

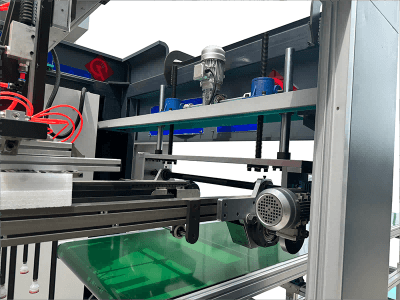

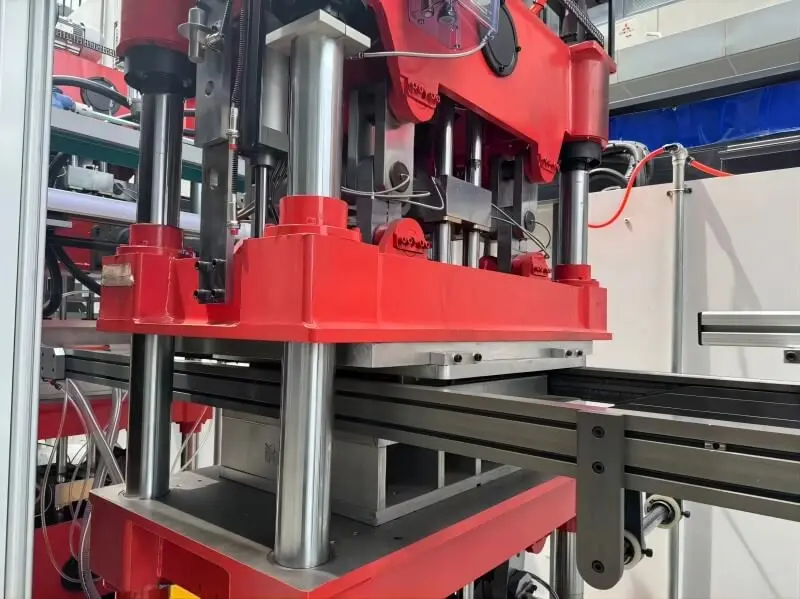

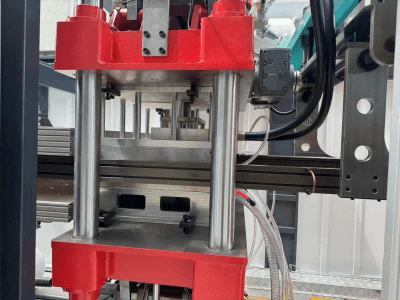

The station of the thermoforming machine is mainly used for the forming processing of containers, stacking and so on.

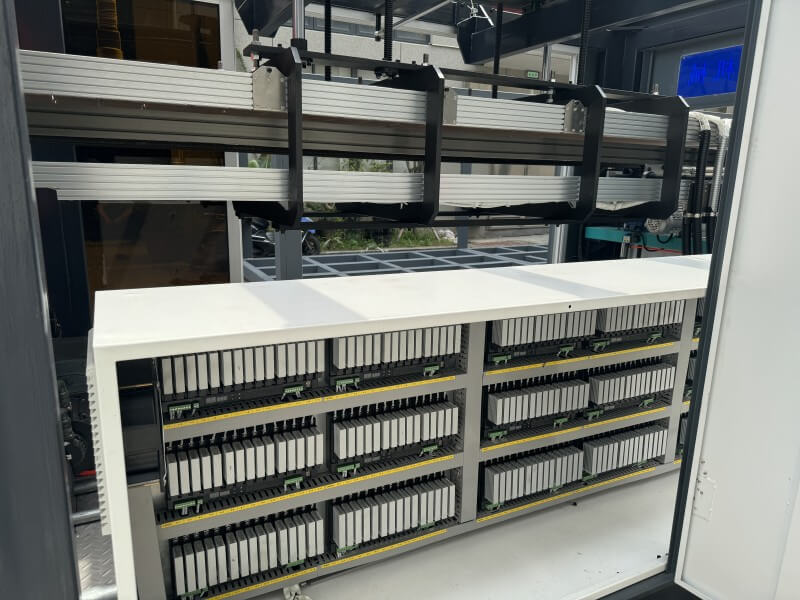

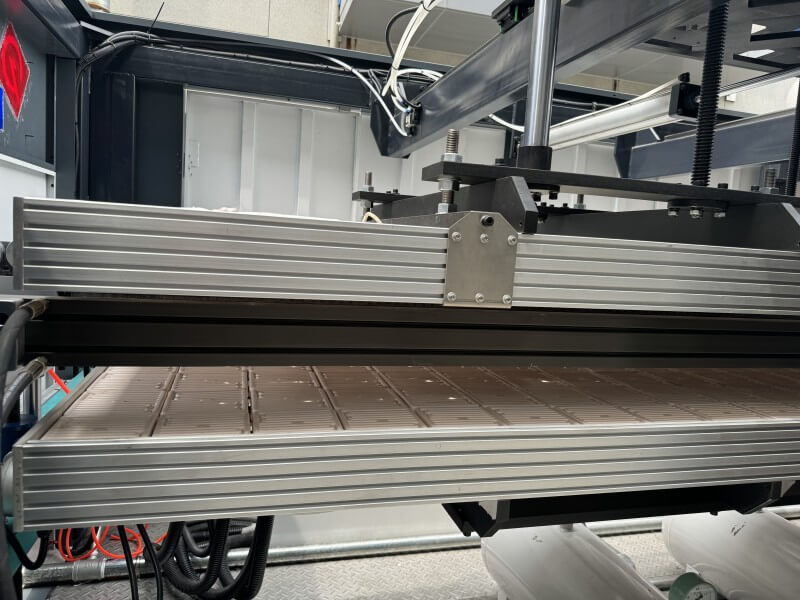

The role of the heating box of the thermoforming machine is to heat the raw material to a certain temperature, so that it softens or melts, so that it can be formed or processed.

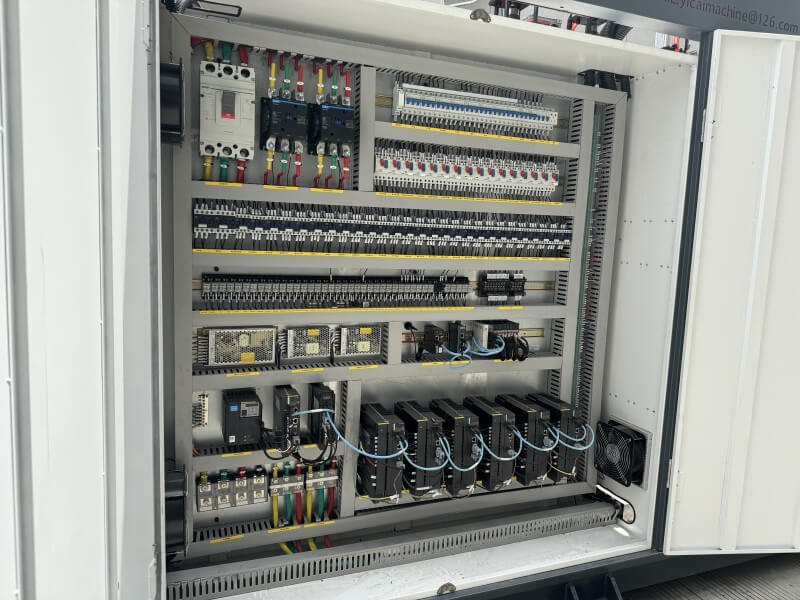

Electric Cabinet: It mainly plays the role of controlling and protecting the electrical system.

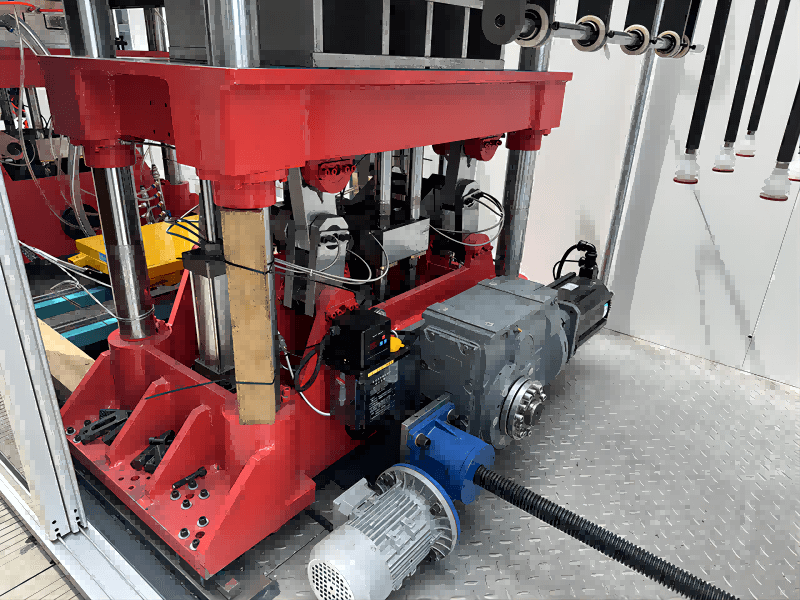

Gearbox: The function of the gearbox is to adjust the working speed and torque of the thermal forming machine to adapt to different forming processes and raw material requirements.
Why choose our multi-station positive and negative pressure thermoforming machine
Multi-station advantageous and terrible stress thermoforming computer is an superior thermoforming equipment, which is extensively used in plastic products, packaging materials, digital merchandise and different industries. It has a range of features and benefits to meet distinctive manufacturing needs.
The multi-station high quality and terrible strain dual-purpose thermoforming desktop has a multi-station design, which can function a couple of methods at the identical time to enhance manufacturing efficiency.
The gear has two forming strategies of fine and terrible pressure, and the splendid forming approach can be chosen in accordance to the necessities of the product. Positive and bad stress molding is appropriate for making merchandise with convex and concave surfaces, such as plastic boxes, pallets, etc. The poor strain molding is appropriate for the manufacturing of flat products, such as plastic sheets, packaging films, etc. This flexibility makes the tools greater adaptable to the manufacturing wants of unique products.
The multi-station fine and terrible strain thermoforming laptop additionally has the traits of excessive precision and stability. It makes use of superior manipulate structures and sensors to precisely manage parameters such as temperature, strain and time to make sure product first-class and consistency. At the identical time, the structural sketch of the equipment is secure and reliable, and can run stably for a lengthy time, lowering the variety of disasters and maintenance.
The gadget additionally has a uncomplicated operation interface and safety safety measures. The operation interface is easy and effortless to understand, the operation is handy and fast, and the technical necessities of the operator are reduced. At the identical time, the tools is additionally geared up with security doors, emergency end buttons and different security gadgets to make certain the protection of operators.
Diverse applications across multiple industries
This multi-station wonderful and terrible pressure, dual-use thermoforming desktop is extensively used in the manufacturing of plastic products. It is in particular designed to mildew plastic substances into a range of shapes and forms. With its superior science and unique control, this computer ensures tremendous and environment friendly manufacturing of plastic merchandise such as containers, trays, cups, and different personalized plastic items. The multi-station characteristic permits for simultaneous manufacturing of a couple of products, growing productiveness and reducing manufacturing time.

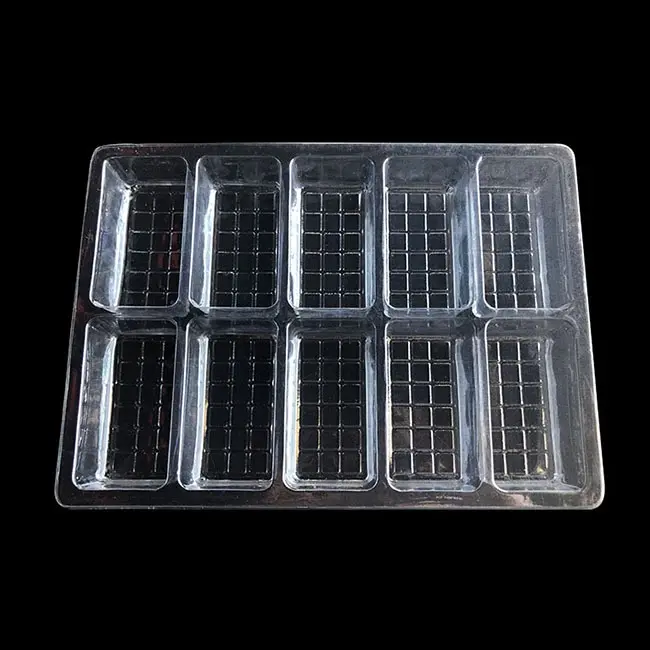

The versatility of this thermoforming desktop makes it an best desire for the manufacturing of packaging materials. It can effectively mould substances like PVC, PET, PS, and PP into packaging merchandise such as blister packs, clamshells, trays, and inserts. The machine's nice and terrible stress competencies allow it to create specific and difficult designs, making sure the packaging substances meet the required specifications. Its high-speed operation and computerized approaches make it appropriate for large-scale production, assembly the needs of a number of industries along with food, pharmaceuticals, and client goods.
In the electronics industry, this multi-station thermoforming computer performs a indispensable position in the manufacturing of digital products. It is succesful of molding plastic aspects used in digital gadgets such as casings, covers, and panels. The machine's unique temperature manage and adjustable stress settings make certain the correct formation of problematic shapes and dimensions required for digital products. Its dual-use feature permits for each effective and bad stress molding, accommodating one of a kind diagram requirements. With its high-speed production capabilities, this laptop contributes to the environment friendly manufacturing of digital products, assembly the industry's demand for high-quality and precision.
Step-by-step operating procedure for the thermoforming machine
a. Ensure that the laptop is right related to the strength grant and grew to become on.
b. Check that all protection measures are in location and functional.
c. Make certain the critical molds and substances are prepared for use.
a. Access the manage panel and pick the preferred running mode (positive/negative strain or terrible pressure).
b. Set the terrific temperature, pressure, and time parameters based totally on the fabric and product requirements.
c. Confirm the settings and enable the desktop to attain the preferred temperature.
a. Open the cloth loading region and region the preferred cloth (e.g., plastic sheets) onto the loading platform.
b. Ensure that the fabric is top aligned and located for the forming process.
c. Close the cloth loading vicinity securely.
a. Press the begin button on the manipulate panel to provoke the forming process.
b. Monitor the machine's operation and make sure that the cloth is heated evenly and reaches the preferred temperature.
c. Once the fabric is ready, the computing device will mechanically observe the splendid strain and shape the product.
a. Wait for the forming procedure to whole and the product to cool down.
b. Open the mildew location and cautiously do away with the fashioned product from the mold.
c. Place the shaped product in a distinct vicinity for similarly processing or packaging.
a. If necessary, repeat the above steps to produce extra products.
b. Adjust the parameters as wished for exclusive substances or product specifications.
a. Once the manufacturing is complete, flip off the computing device and disconnect it from the strength supply.
b. Clean the desktop and get rid of any final substances or debris.
c. Perform movements renovation and inspections as endorsed via the manufacturer.
Note: This working process is a familiar tenet and can also fluctuate relying on the unique mannequin and producer of the thermoforming machine. Always refer to the machine's consumer guide and observe the manufacturer's directions for protected and environment efficient operation.
