| Model | ECI-900/610 |
|---|---|
| Sheet material | PP PET PS PVC HIPS ABS |
| Sheet thickness | 0.3-2.5mm |
| Sheet Width | 400-850mm |
| Max.Forming area | 780*610mm |
| Maximun forming depth of upper die | 150mm |
| Maximun forming depth of under die | 130mm |
| Sheet speed | 15-40 Strokes/min |
| Heating rated power | 180Kw |
| Upper path height | 180Kw |
| Lower power molding | 150KW |
| Mold height | 450-550mm |
| Punching up power | 150mm |
| Punching down power | 180mm |
| Punching die power | 300-400mm |
| Servo power on molding | 7.5Kw |
| Servo power under molding | 5.5KW |
| Punching servo power | 7.5KW |
| Punching servo power | 5.5KW |
| Tensile servo | 5Kw |
| Feed servo | 5.5KW |
| Stacking servo | 2KW |
| Winding motor | 3Kw |
| Air pressure | 0.5-0.8Mpa |
| Voltage | 380V 50Hz |
| Total power | 275Kw |
| Dimension | L14m*W2.4m*H2.8m |
| Weight | 10.5T |

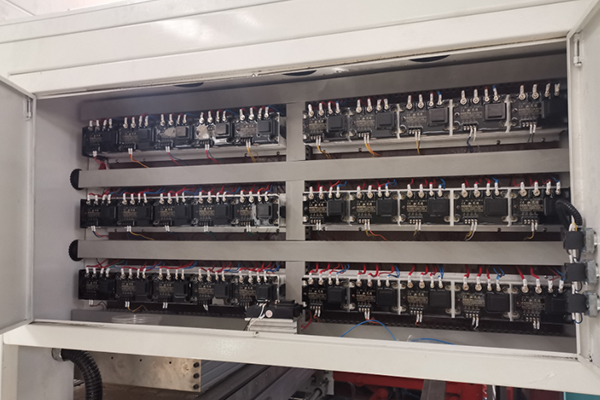

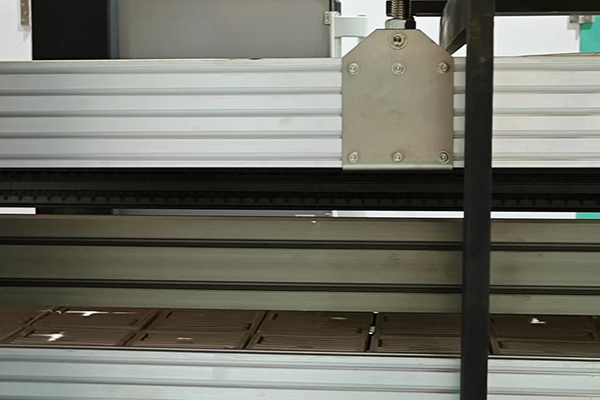

The heating system adopts advanced up and down 7 zone 25 way heating technology, each heating zone can be individually controlled, can quickly and evenly heat the mold, to ensure that the plastic material can fully flow and form.

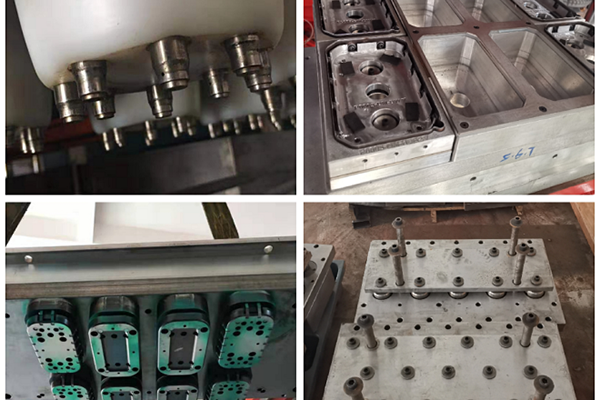

The molding mold is a key component of the multi-station thermoforming machine, which is made of high-strength and wear-resistant materials to ensure long-term stable production operation. The molding mold is designed to be quickly replaced to ensure the quality and accuracy of the molding product.

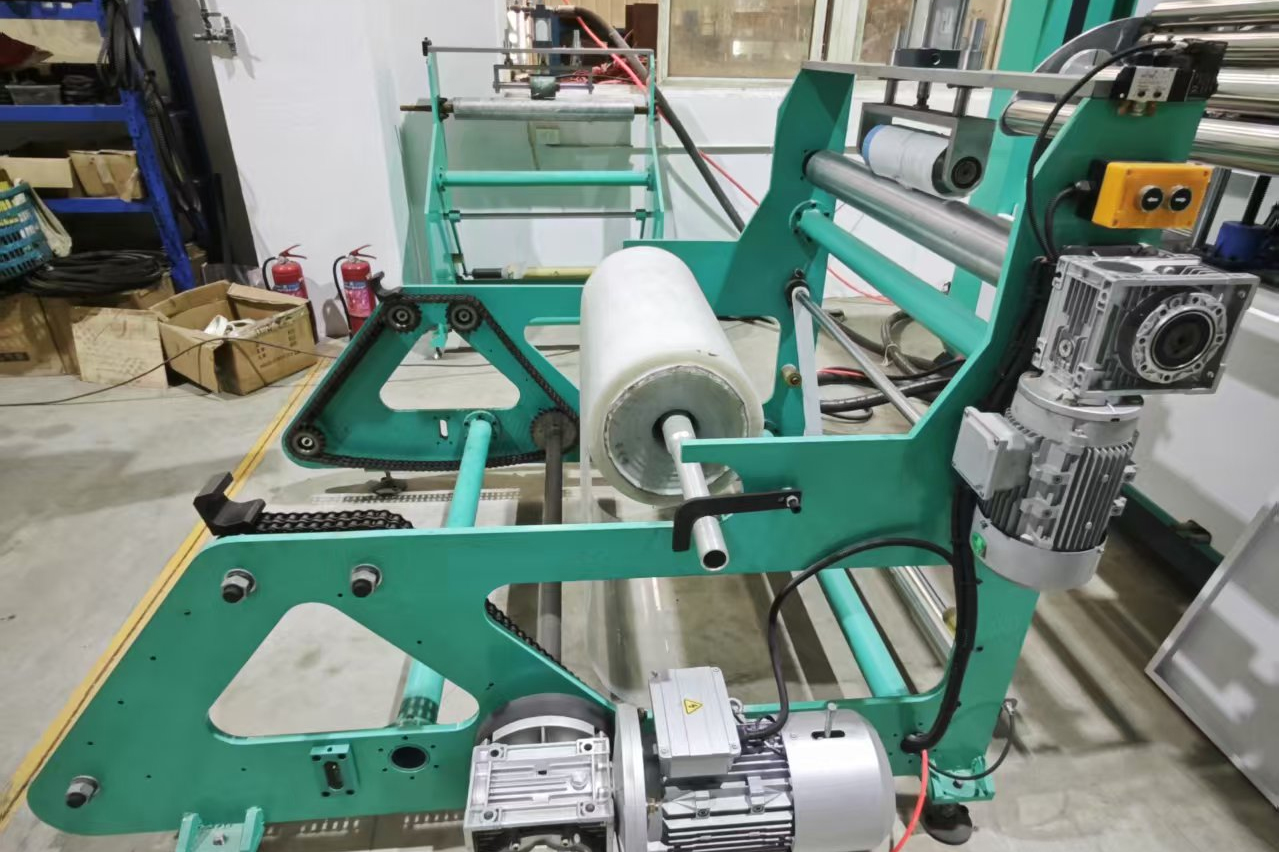

The automatic feeding system of the forming machine adopts advanced feeding device and control system, which can accurately and stably send plastic particles or particles into the mold to ensure the stability of the forming process.
The automatic demoulding system can quickly and accurately remove the molded product from the mold to ensure production efficiency and product quality.
The control system of the multi-station thermoforming machine usually adopts advanced control technology such as PLC or industrial computer, which can realize the precise control and monitoring of the automated production process.
After forming, the product needs to be cooled and cured, and the multi-station thermoforming machine is usually equipped with an efficient cooling system to ensure the dimensional stability and quality of the product.

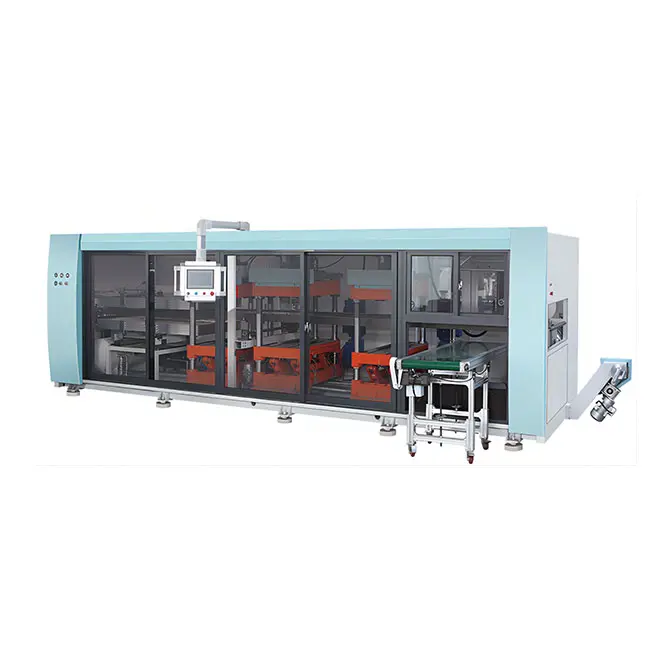

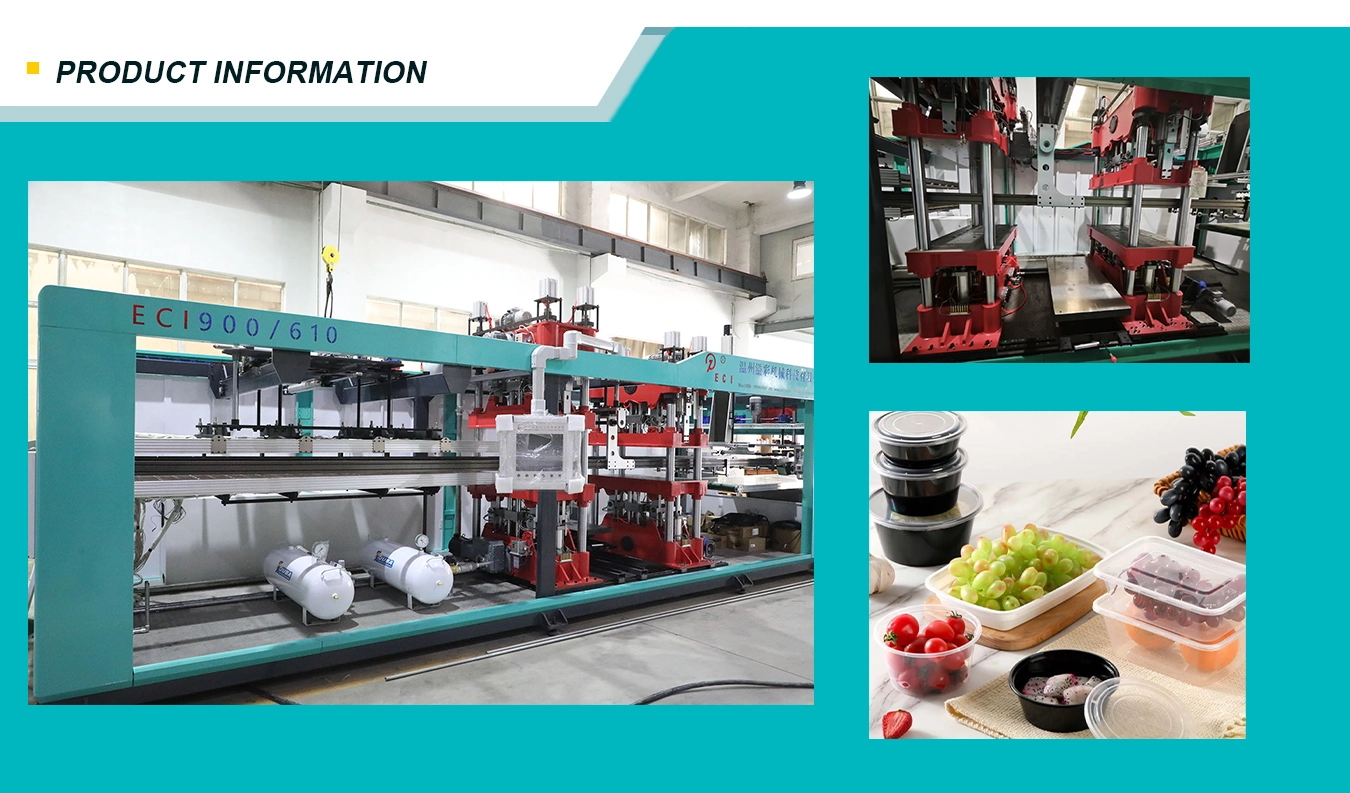

The ECI-900/610 is a versatile, fully automatic multi-station thermoforming machine designed to meet the diverse packaging needs of the food and beverage industry. Whether you're in food production, fresh produce distribution, or any sector requiring high-quality plastic packaging, this machine offers the flexibility and efficiency to elevate your packaging process.
Our machine, paired with the appropriate molds, excels in mass-producing:
The three-station configuration of our thermoforming machine efficiently creates:
When operating the thermoforming machine, the operator should operate in strict accordance with the equipment operating procedures and safety operation regulations to ensure production safety and product quality.
Prepare the sheet.
Check whether all equipment and safety devices are complete.
Start the thermoforming machine for preheating.
Set the appropriate heating temperature and time.
Select the appropriate mold to install on the machine and ensure that the mold is firmly installed.
Put the sheet into the feed port of the thermoforming machine, and pay attention to controlling the feeding speed and uniformity.
Start the forming process of the thermoforming machine.
Adjust the heating time, heating temperature and pressure.
After forming, stop heating and pressure.
After cooling and curing, open the mold and take out the molded plastic products.
Arrange the formed plastic products.
Shut down the thermoforming machine for cleaning and maintenance.
A1: The machine handles a wide range of thermoplastic materials, including PP, PET, PS, PVC, HIPS, ABS, BOPS, PLA, and other barrier sheet materials.
A2: It provides a maximum forming depth of 150mm for the upper die and 130mm for the under die, operating at speeds of 15 to 40 strokes per minute (up to 50 cycles max depending on material details).
A3: The system heats up in under 3 minutes after starting. It achieves stable temperature regulation and saves approximately 10% on energy costs compared to standard configurations.

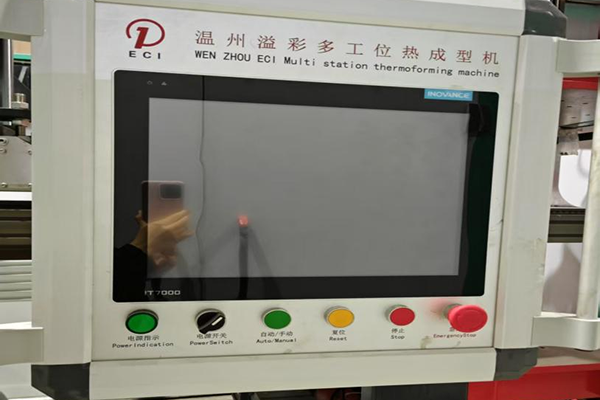

A4: The machine is fully driven by a PLC touch screen interface, which supports automated formula storage and quick electric parameters adjustment to minimize manual tasks.

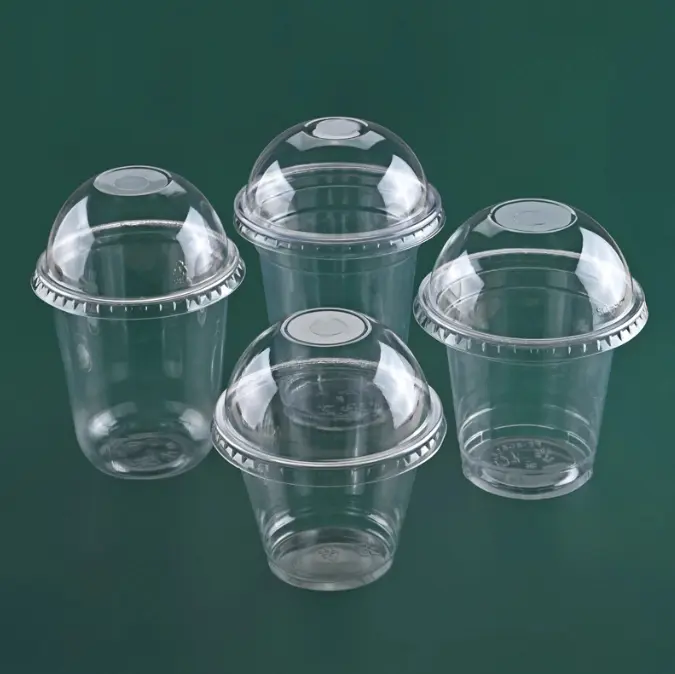

A5: It is widely utilized for packaging in the food, beverage, and fresh produce sectors, producing items such as disposable cups, bowls, coffee lids, vegetable trays, fruit clamshells, and berry baskets.
